Serial Number:

31708

Registration

G-LXRY

Year

2015

Aircraft Type:

helicopter

Title

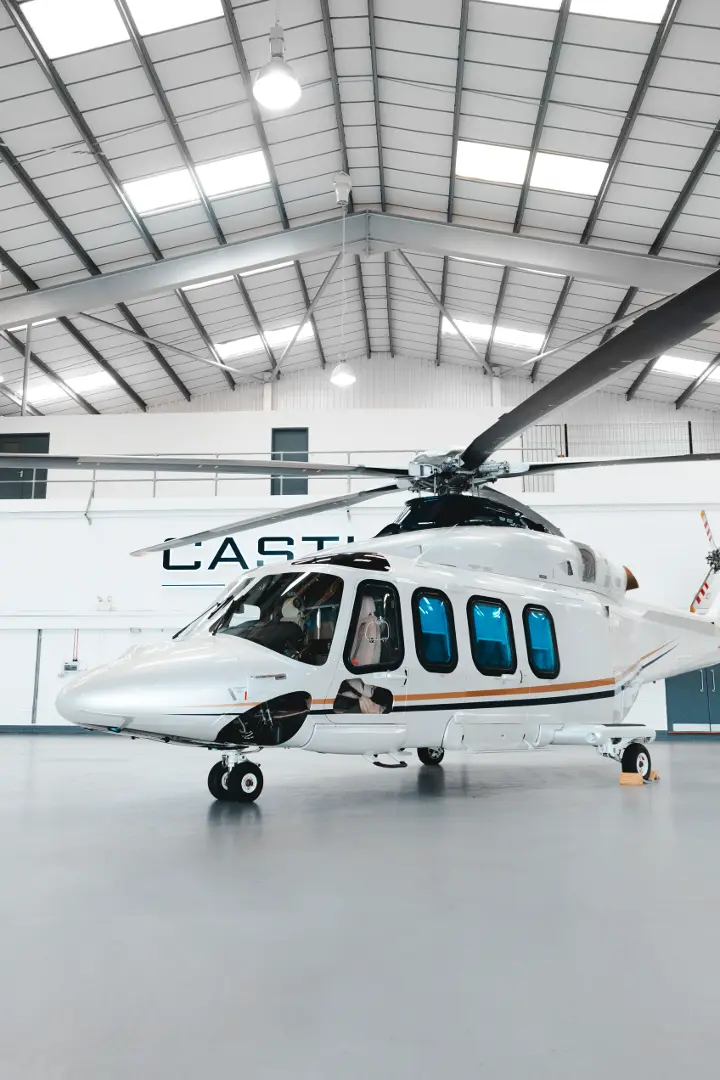

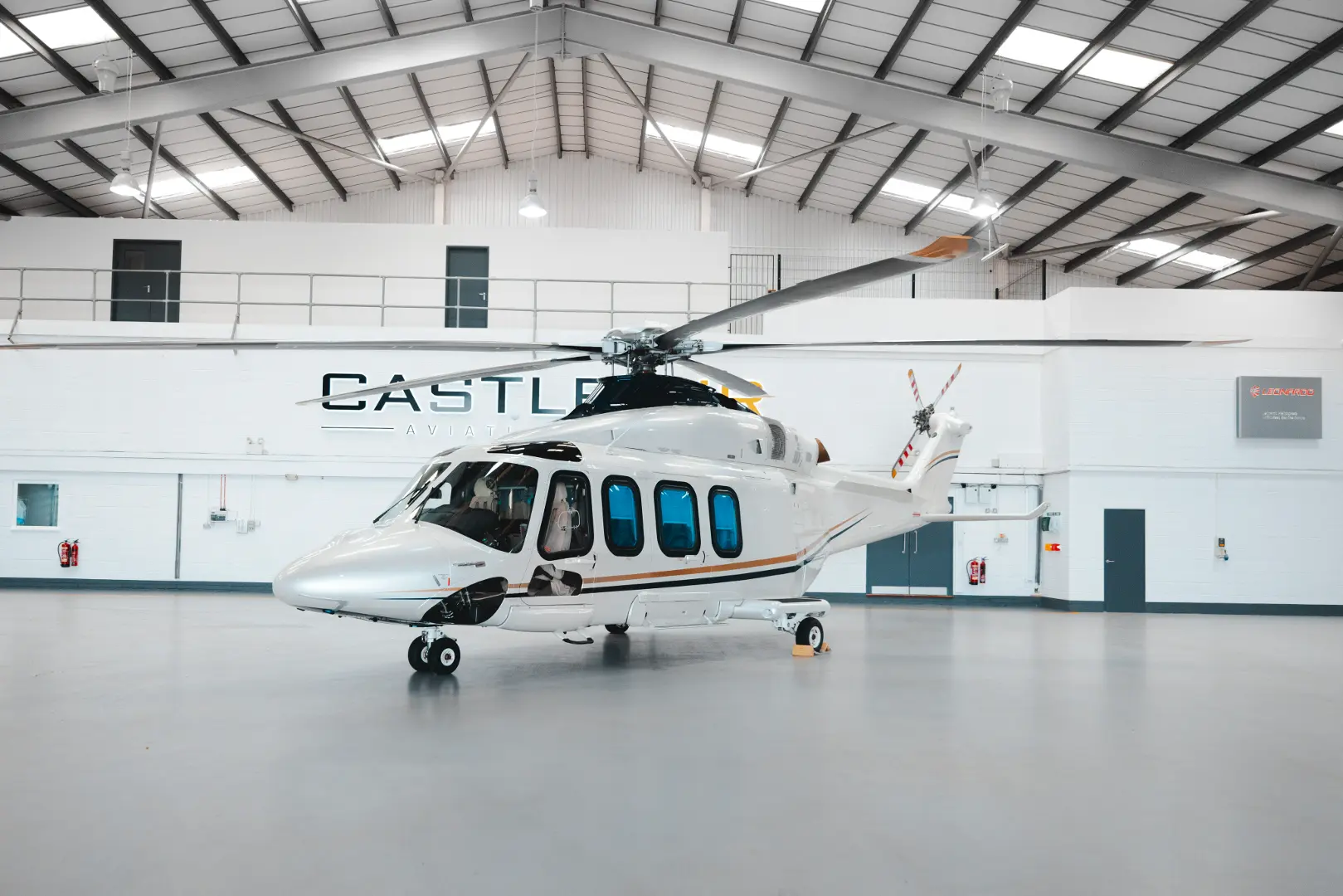

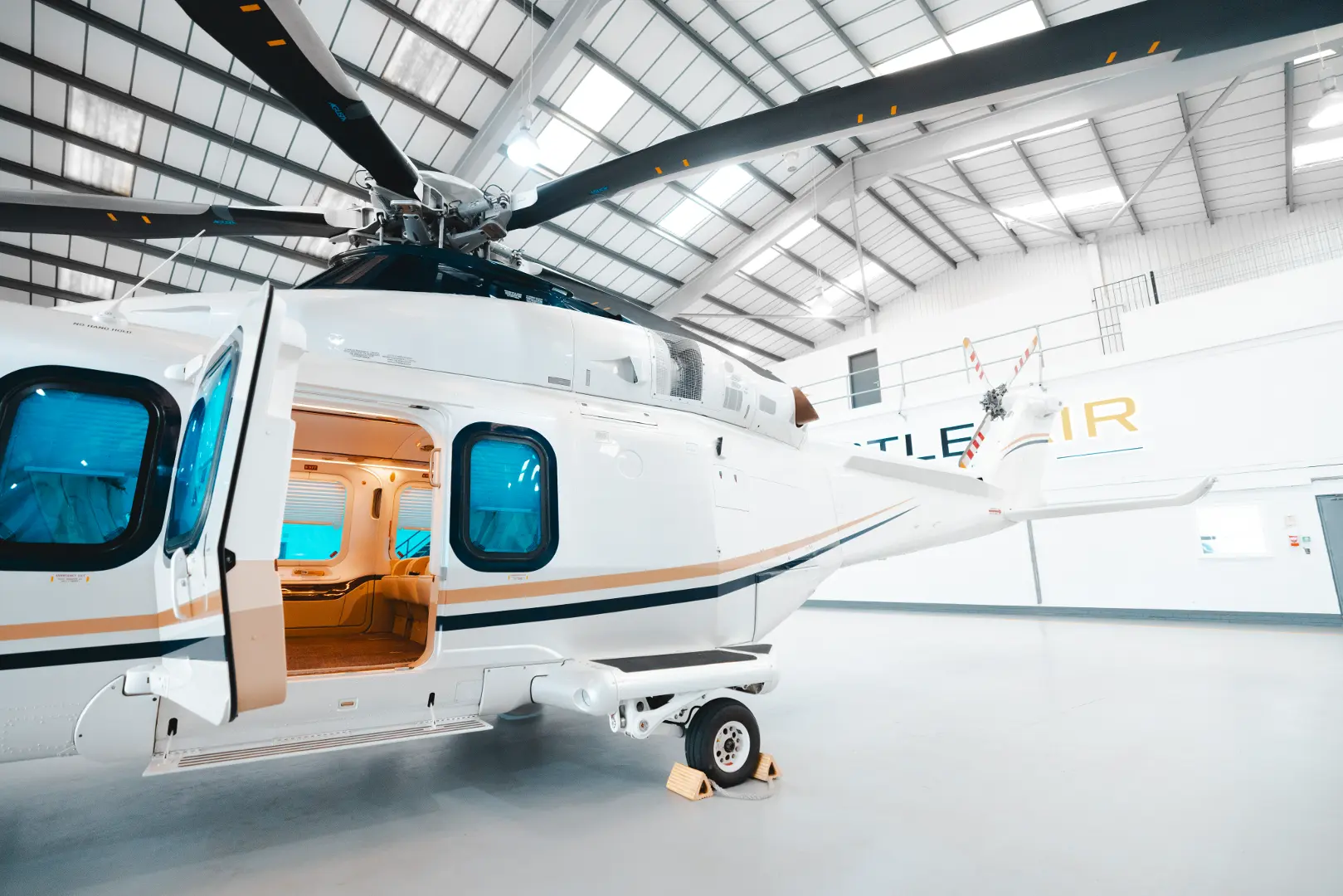

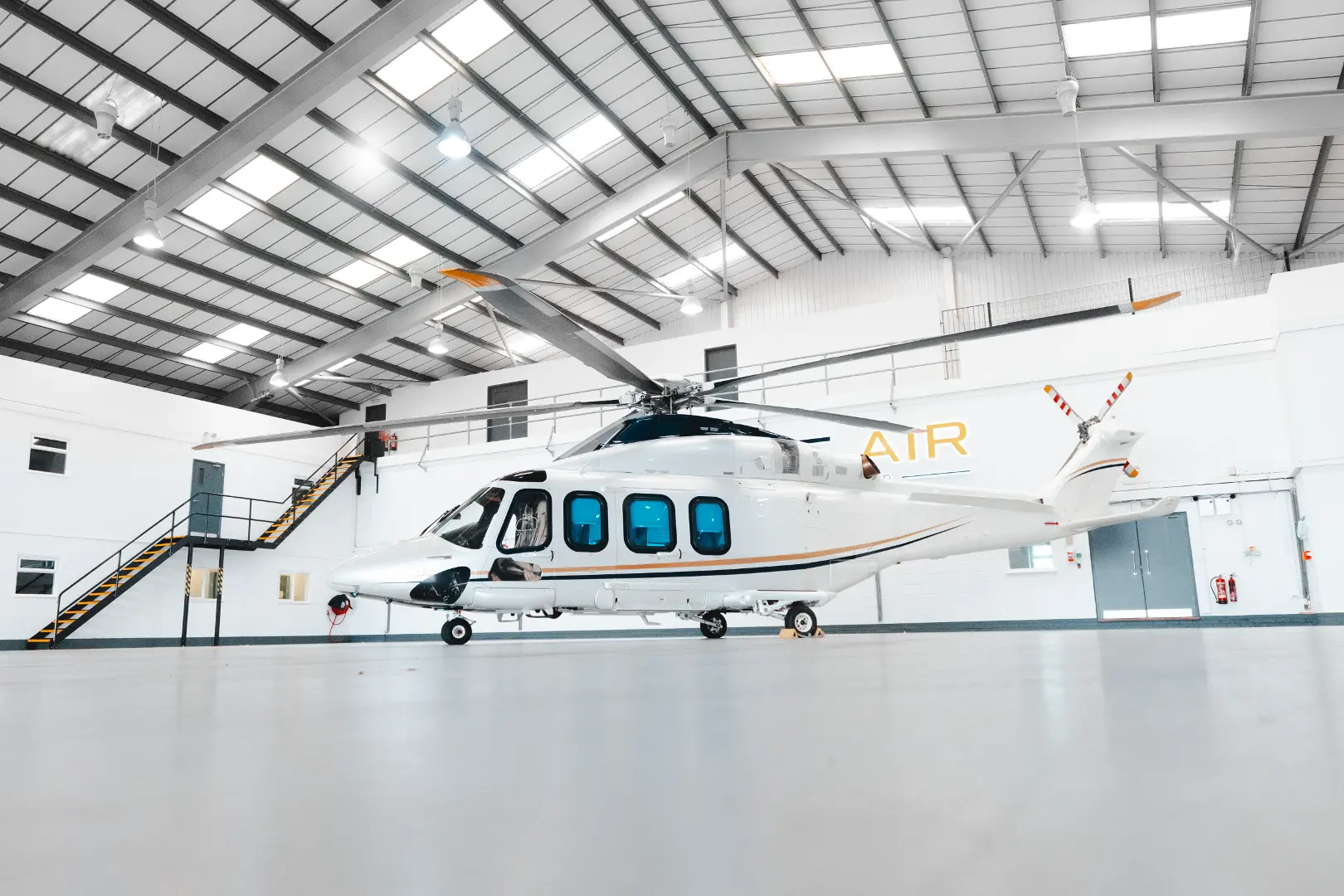

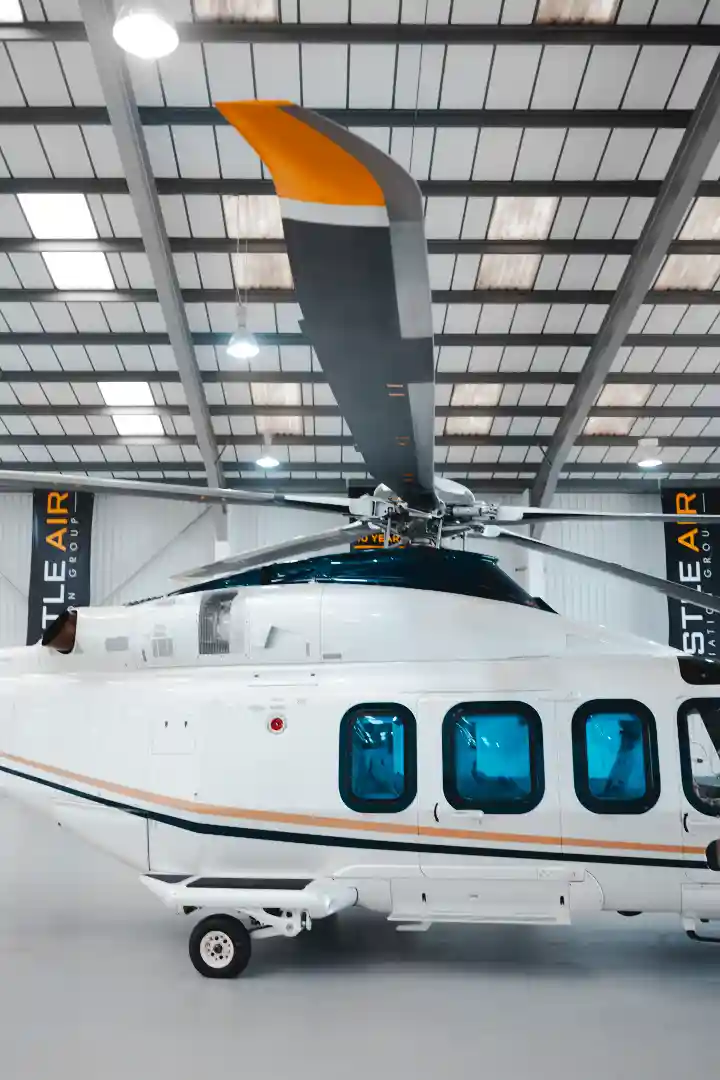

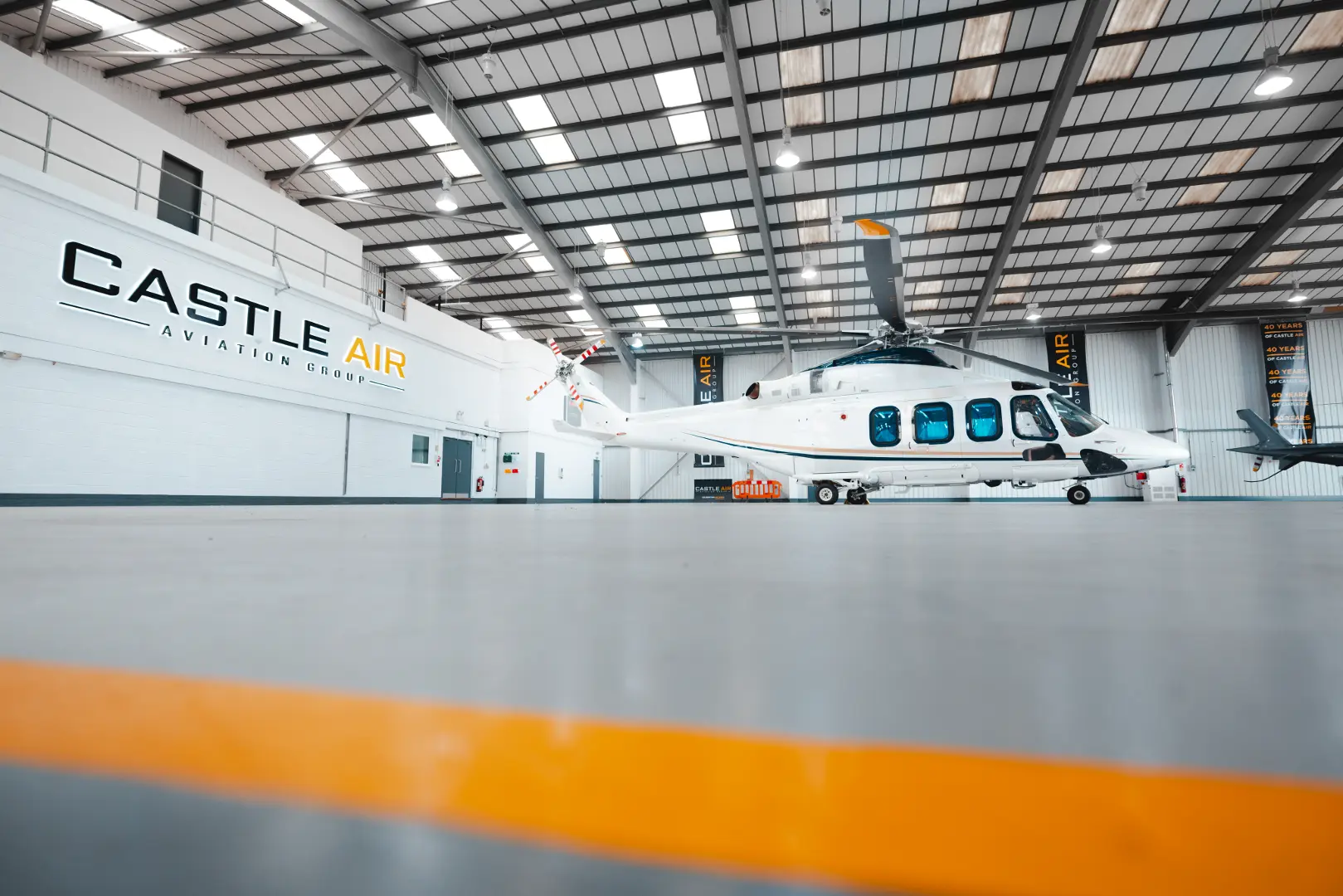

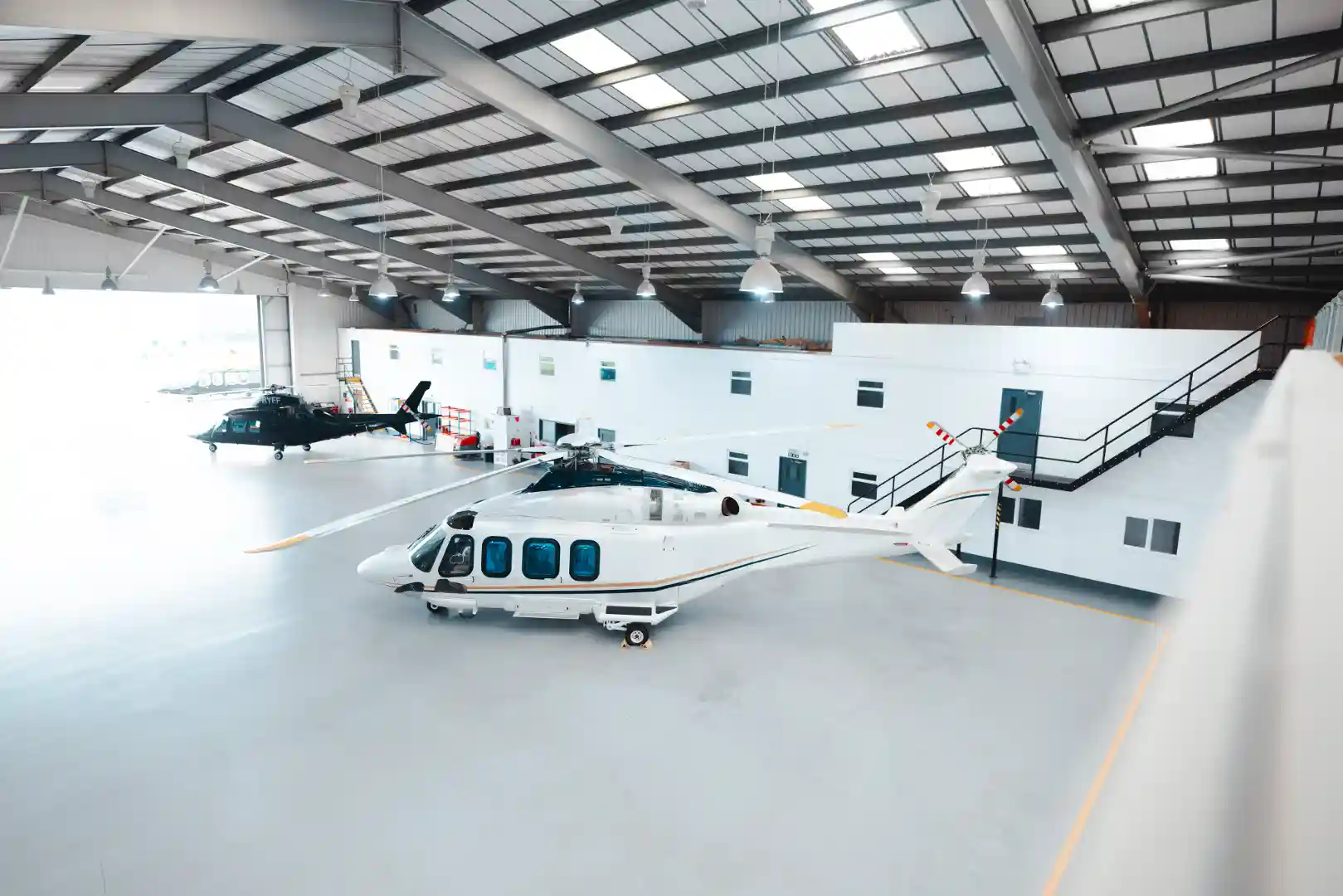

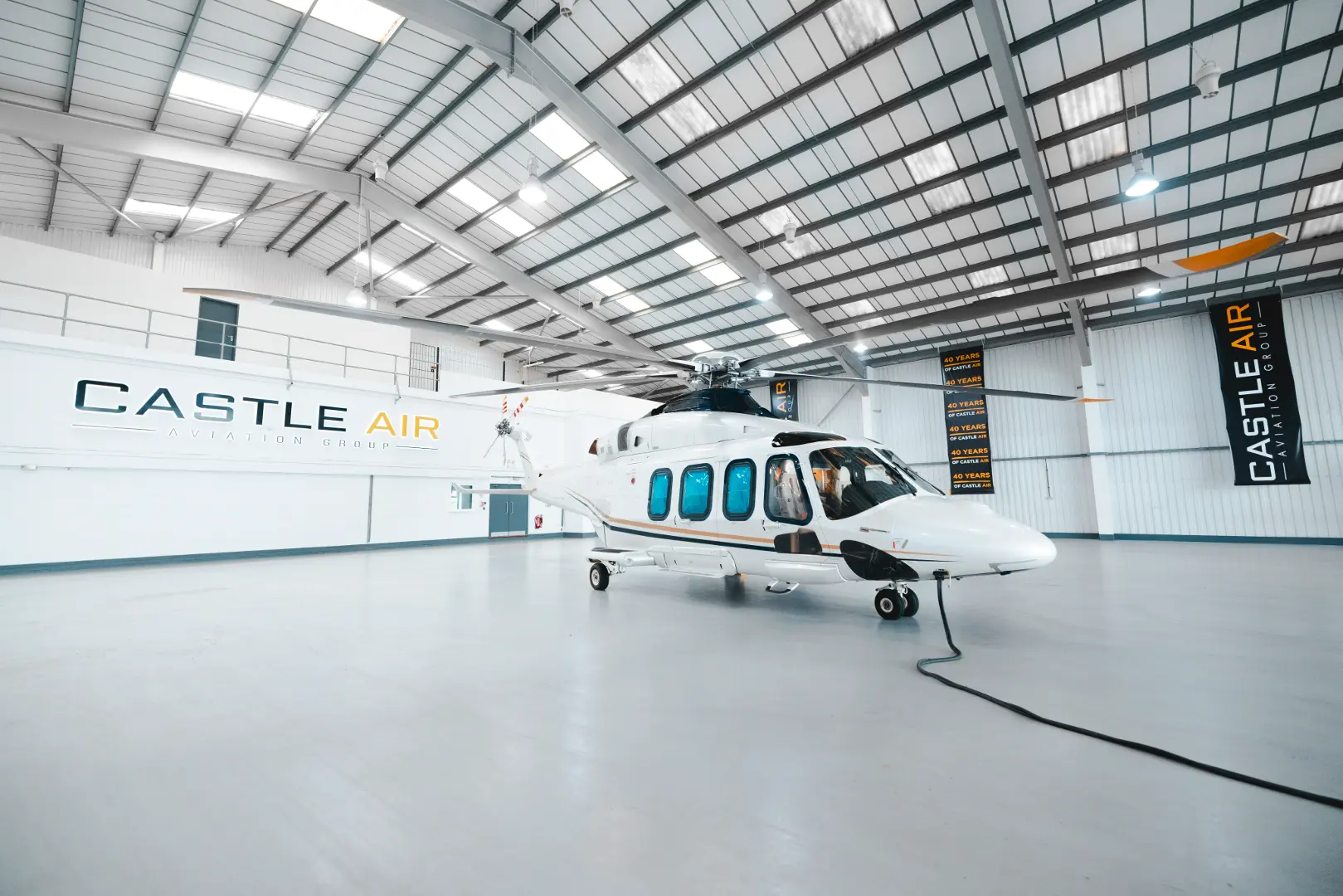

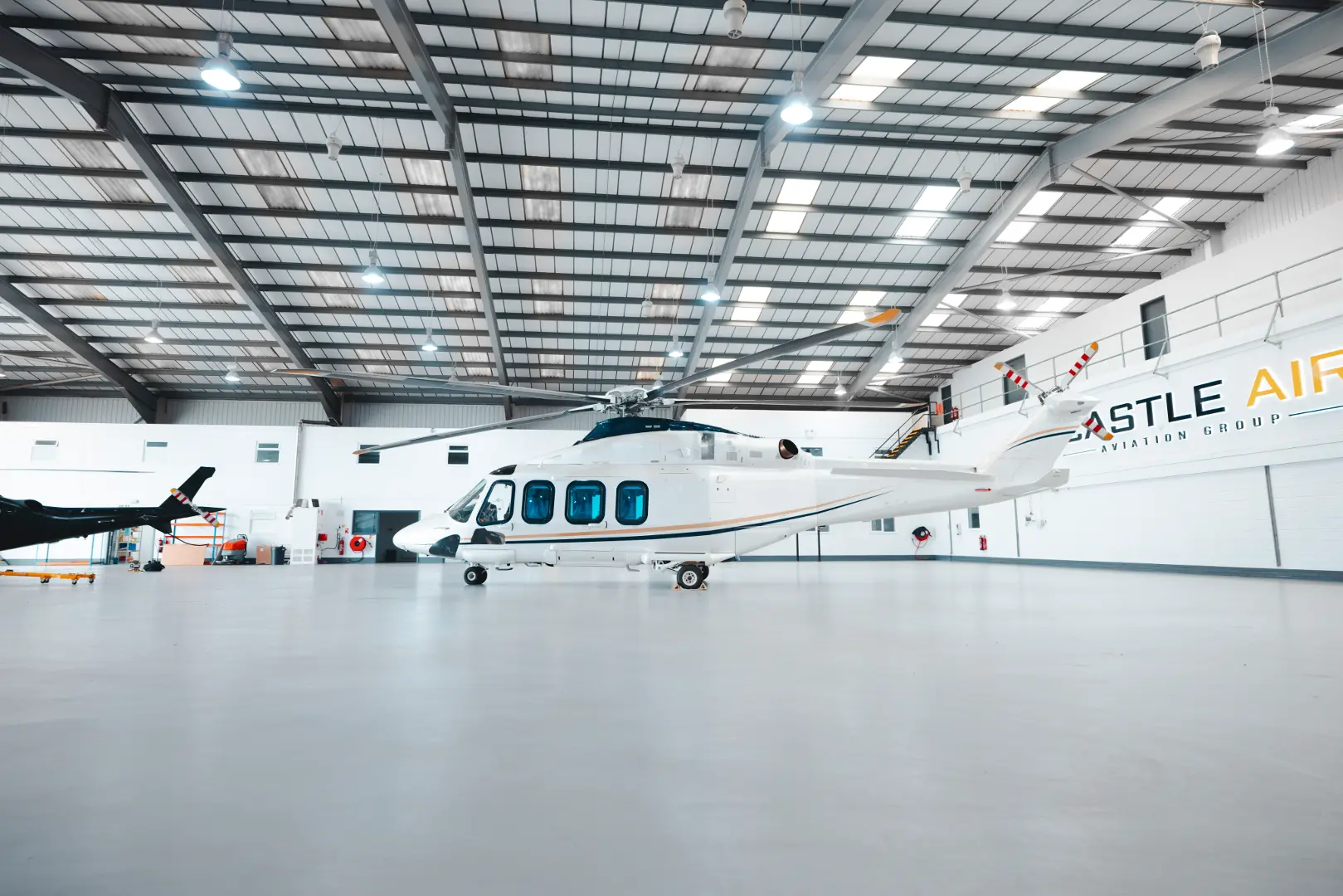

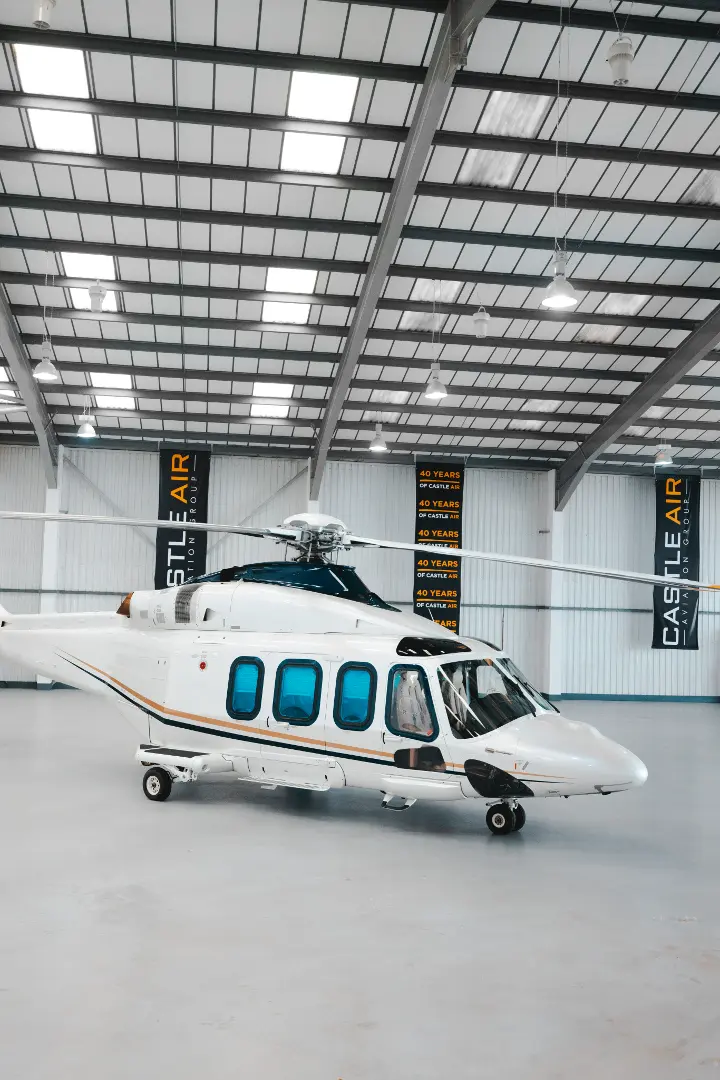

Leonardo AW139 in immaculate condition, loaded with extras

PriceOnApplication

Airframe Hours:

890

Logs

MTOW:

7000 kg

Auxiliary Fuel Tank:

Flight Rules:

IFR

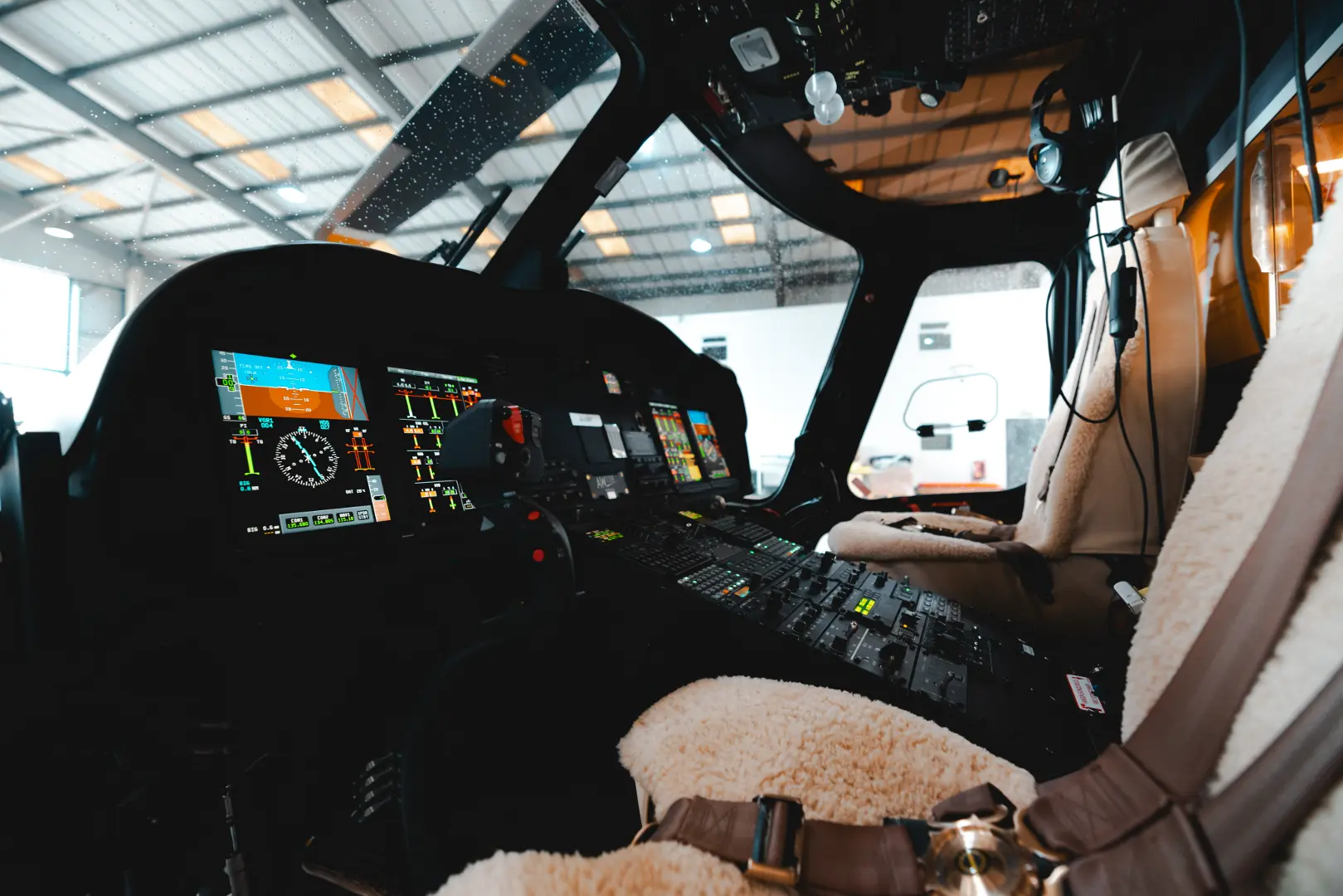

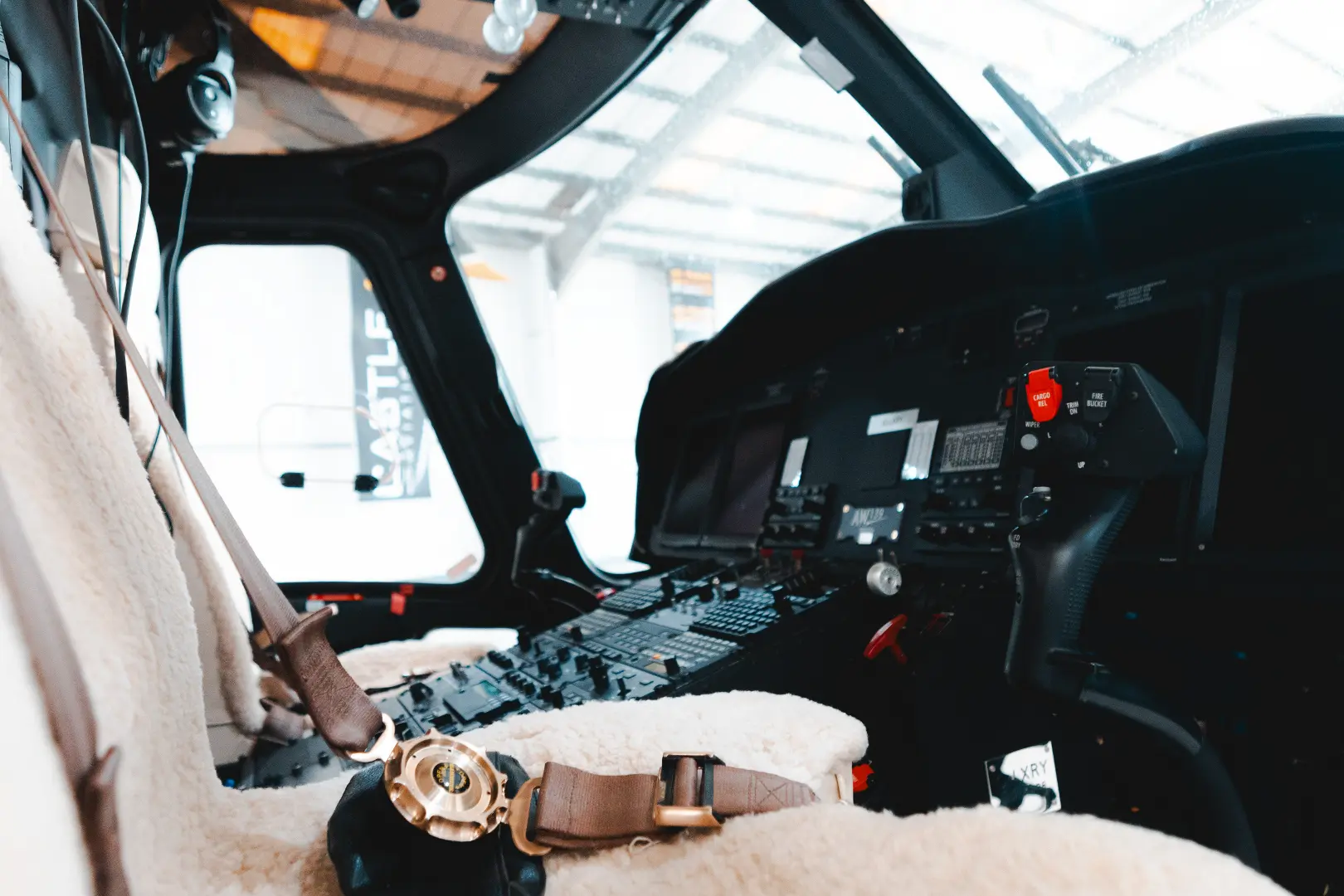

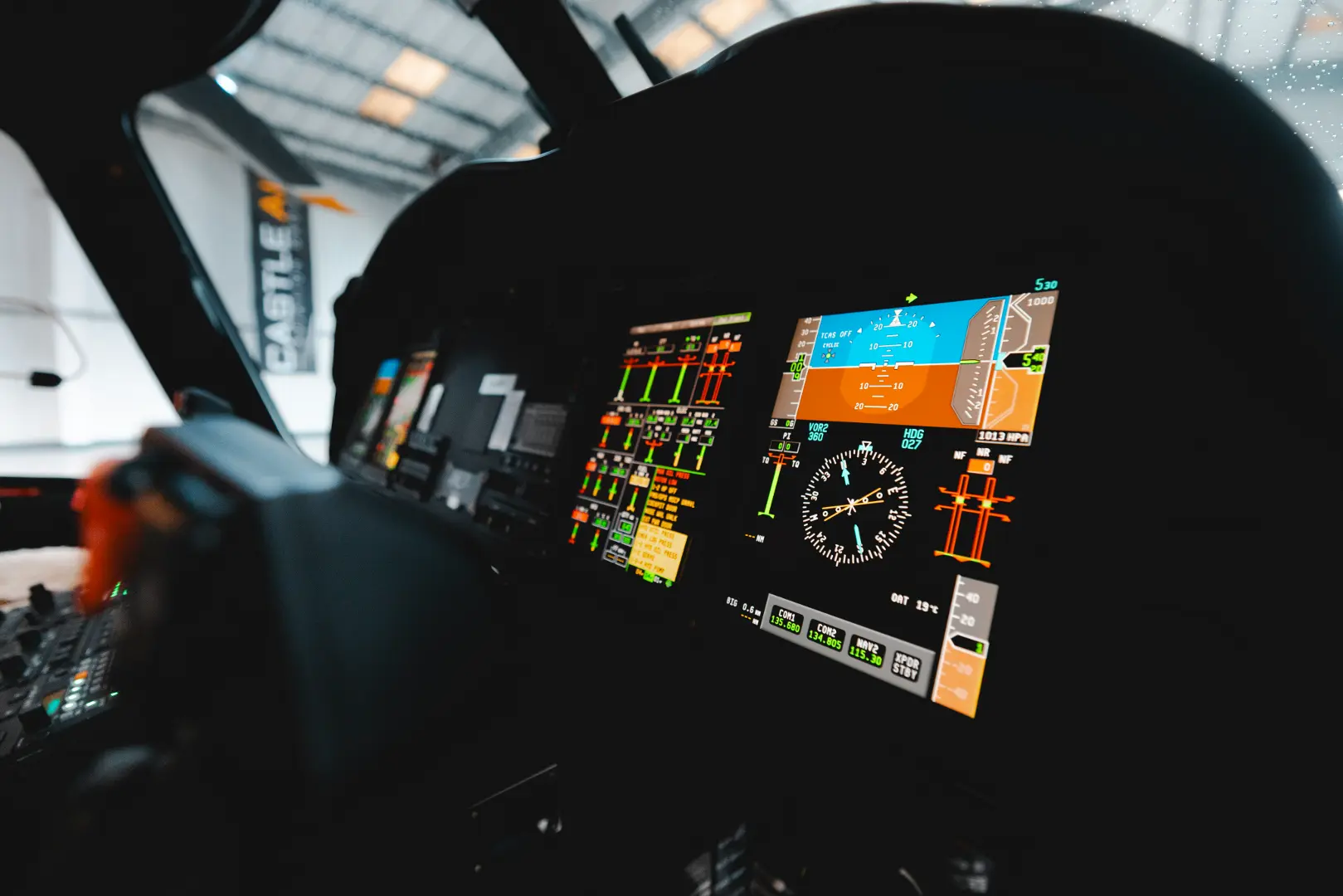

Avionics Equipment:

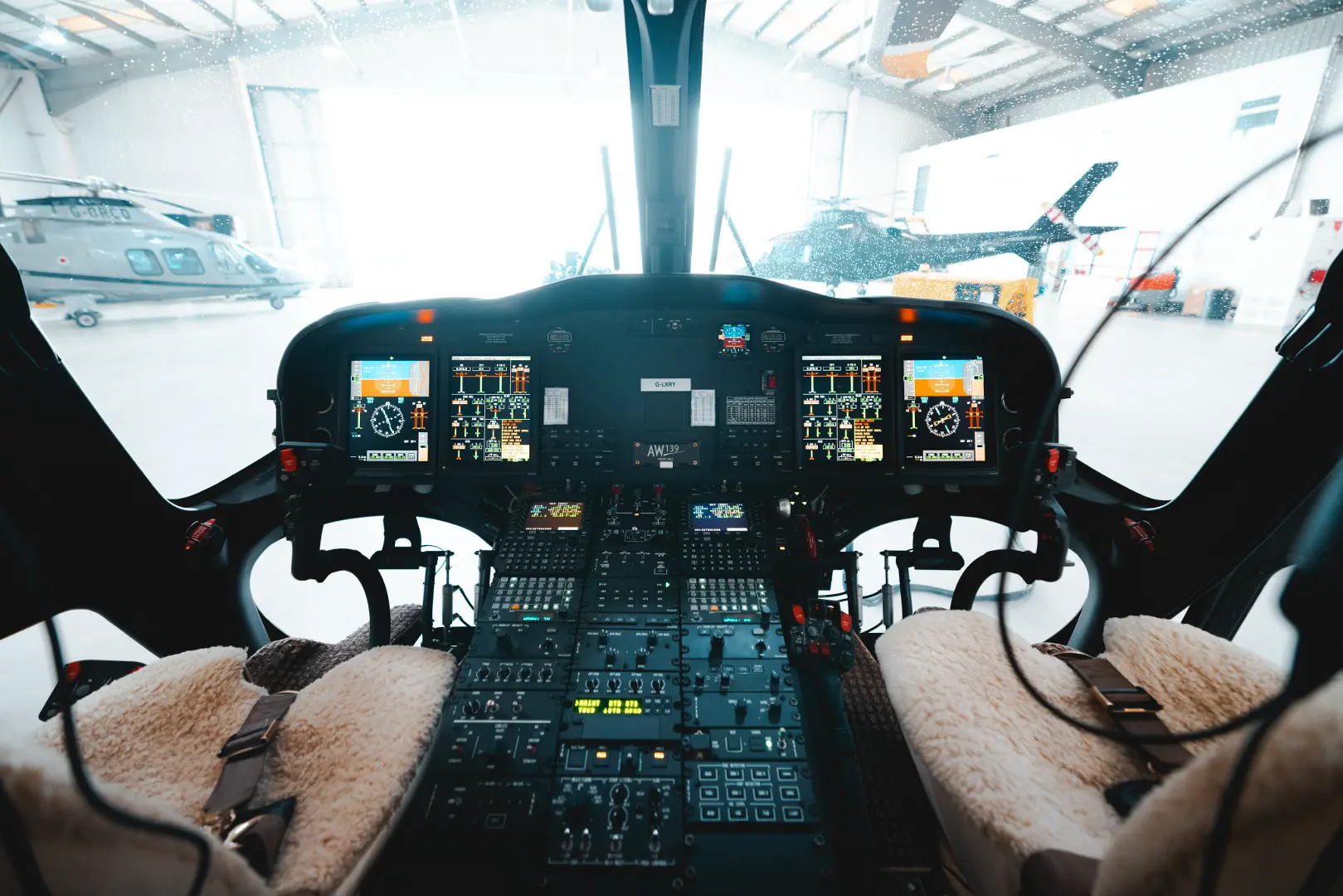

Honeywell Primus Epic Avionics Suite

4-axis DAFCS (Digital Automatic Flight Control System)

Enhanced with Hovermode (HOV)

Avionics Description:

Dual PFD Dual MFD Single ESIS Dual AHRS Dual ADM Dual Display Controllers Dual Cursor Control Devices Dual Modular Avionics Unit Dual VHF Radio Dual NAV Radio Single Mode-S Transponder Single ADF Single DME Dual pedestal mounted Multifunction Control Display Units (MCDU) Dual Radio Altimeter Single ELT Dual GPS (WAAS/SBAS) EGPWS TCAS II Weather Radar

1st radar altimeter RT-300

2nd radar altimeter RT-300

4-axis dual Digital Automatic Flight Control System (DAFCS)

Flight Director System (dual) incorporated into the Modular Avionic Unit (MAU)

Two Honeywell GPS modules

One Mode S diversity transponder with Extended Squitter incorporated into the Modular Radio Cabinet

Engine Make/Model:

Pratt & Whitney Canada PT6

Engine Time:

890

Engine Description:

HONEYWELL & ESP GOLD PROGRAMMES.

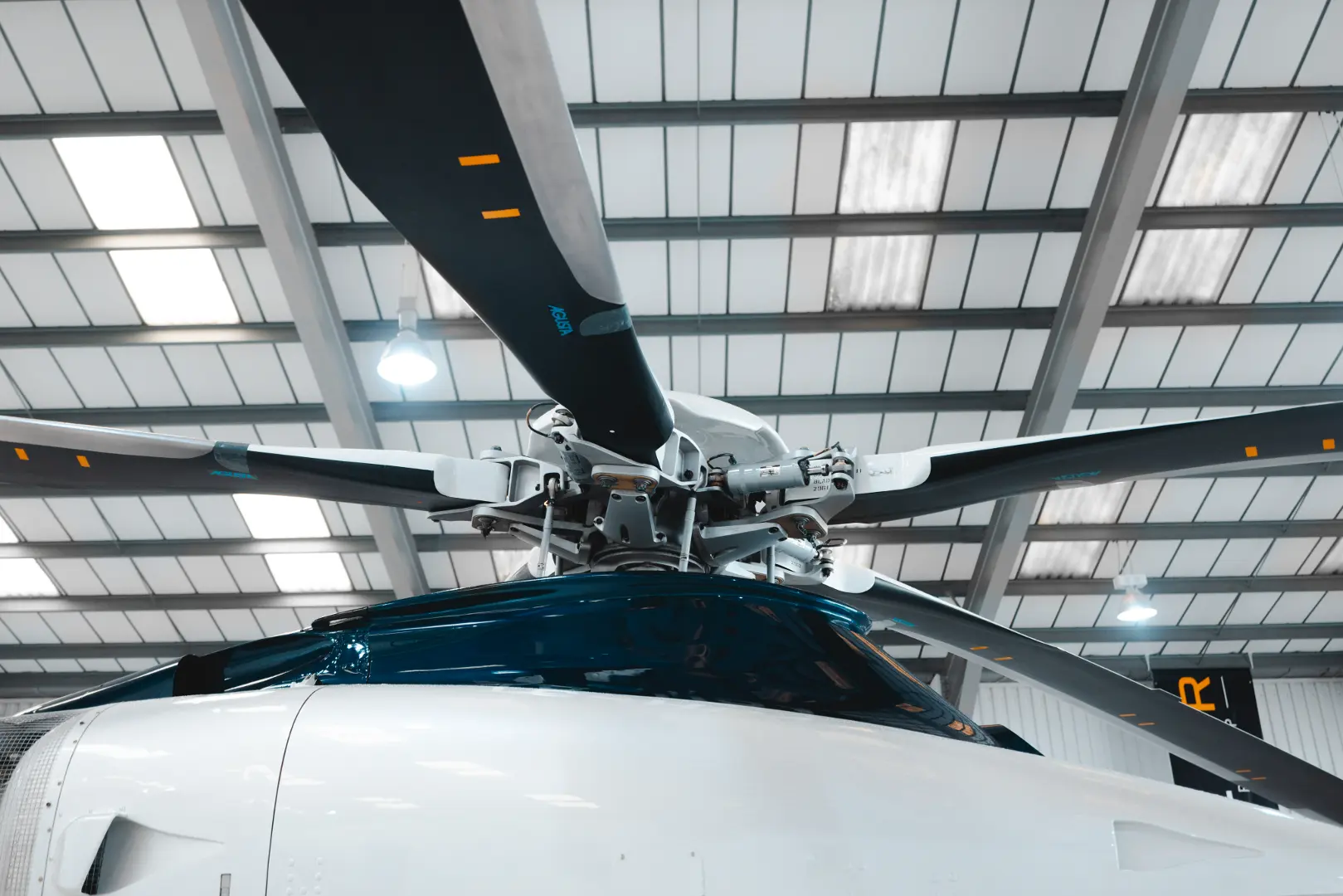

Rotor Time:

890

Additional Equipment:

Forced fan ventilation Bleed air heater and defroster with air noise suppressions Cockpit air ventilation system Baggage compartment cargo tie-down fittings for increased load capacity (up to 300 kg) Rotor brake 1st radar altimeter RT-300 2nd radar altimeter RT-300 4-axis dual Digital Automatic Flight Control System (DAFCS) Basic incorporated into Modular Avionic Units (MAUs) Flight Director System (dual) incorporated into the Modular Avionic Unit (MAU) Two Honeywell GPS modules (GNSS/SBAS – Global Navigation Satellite System/Satellite Based Augmentation System) with Flight Plan Management System (FPMS) One Mode S diversity transponder with Extended Squitter (ADSB-Out 1090 MHz) incorporated into the Modular Radio Cabinet (MRC) Cockpit Voice Recorder & Flight Data Recorder (CVR/FDR) with Underwater Locator Beacon (ULB) Health & Usage Monitoring System (HUMS) Increased Gross Weight - 7000 kg Auxiliary Fuel Tanks (132 US gal) Emergency Floats provisions, removables and Kevlar covers) Camera on Tail Fin Under Belly Cameras (2 ea) Auxiliary heavy duty battery 27 Ah/28 Ah capable of paralled starting with 44Ah battery, in lieu of 13 Ah

Exterior Description:

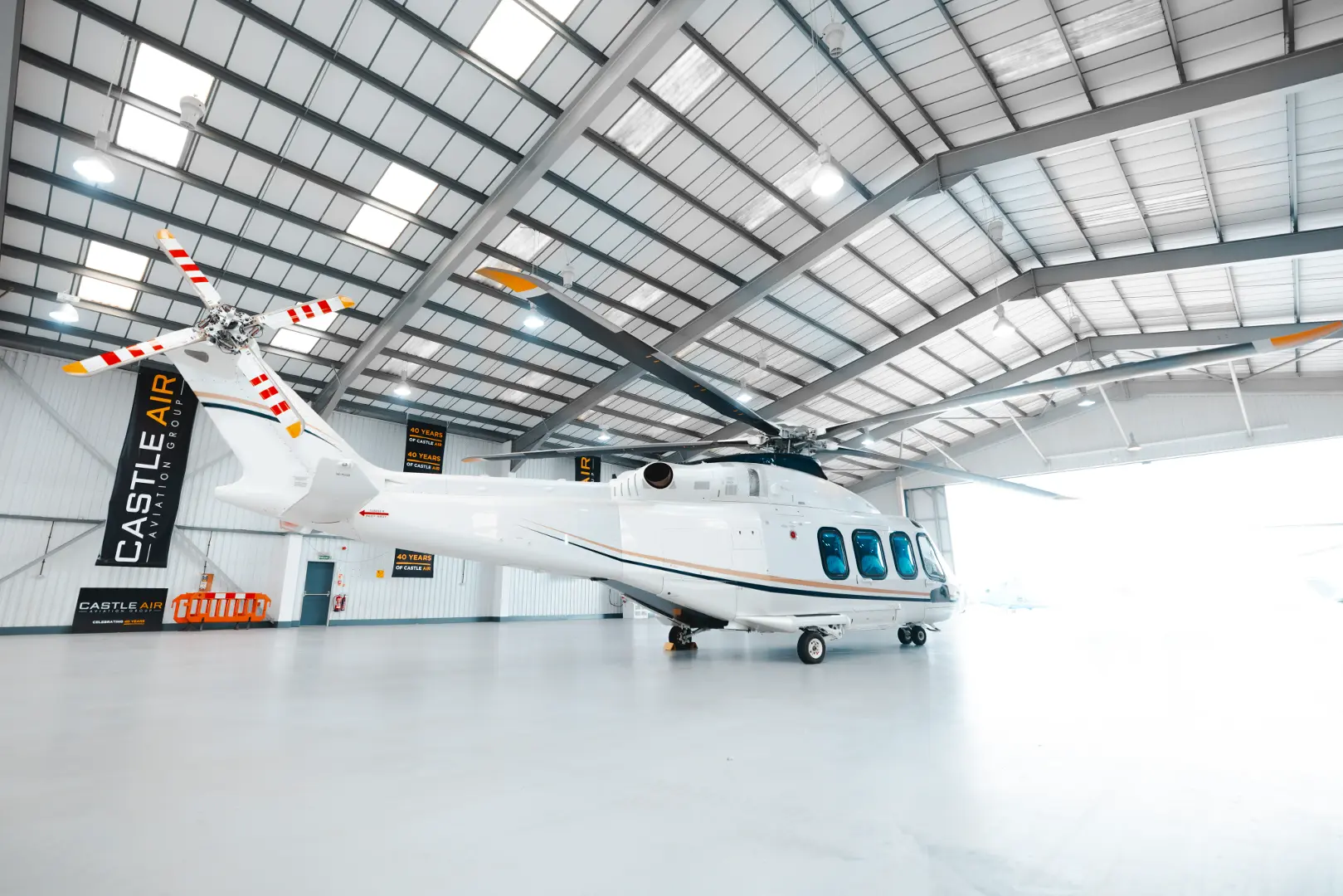

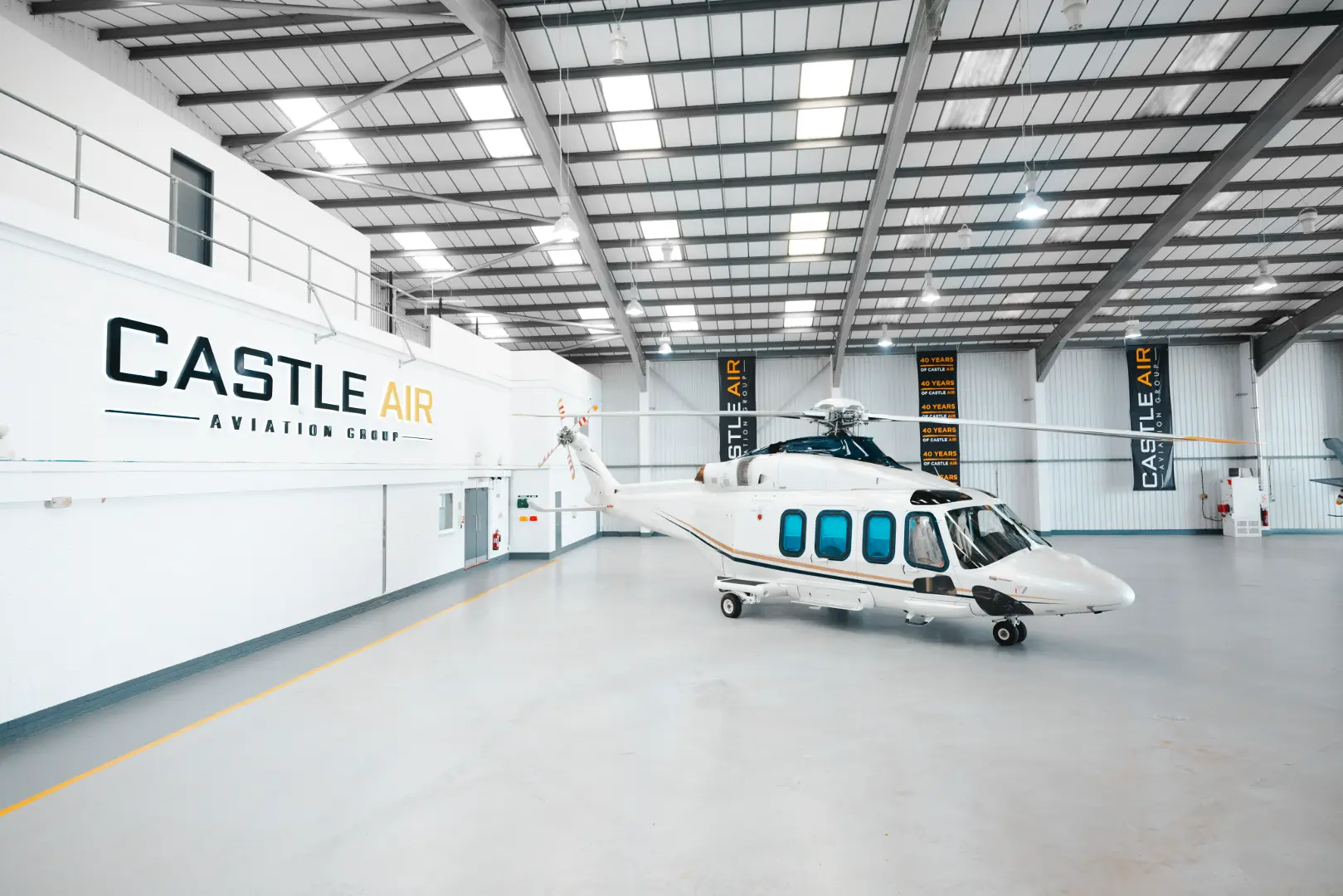

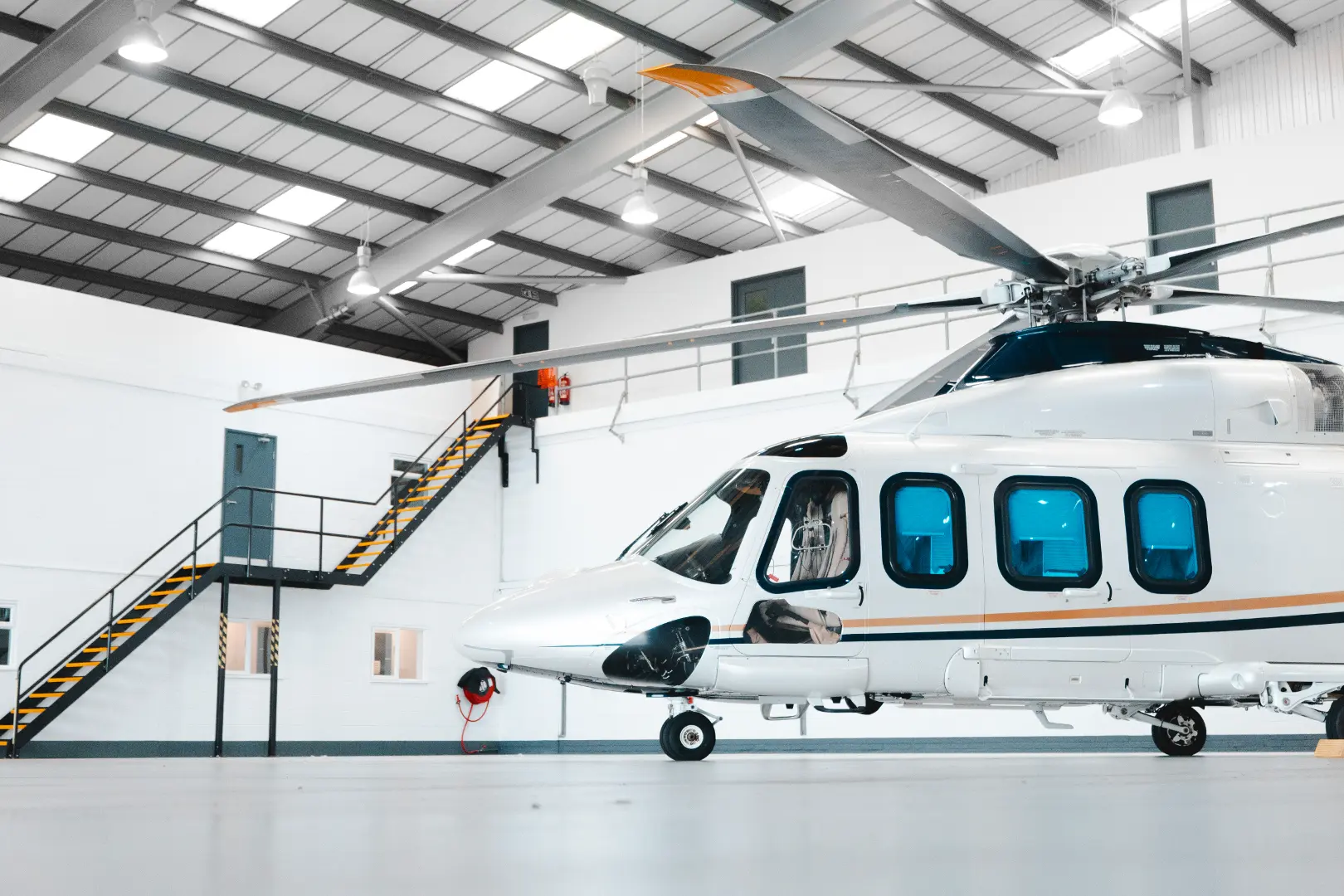

Metallic Paint (beige) with black and gold stripes.

Interior Description:

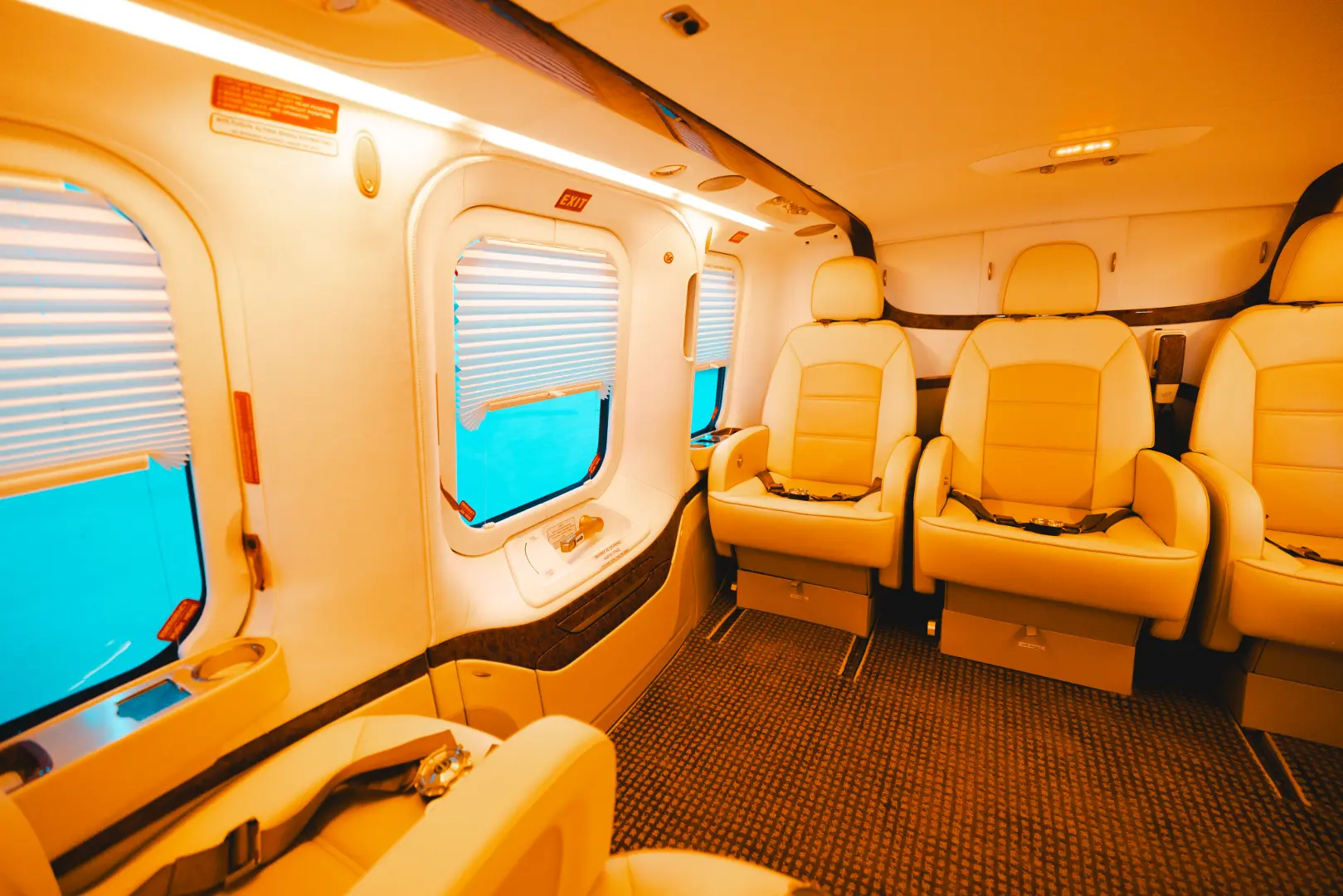

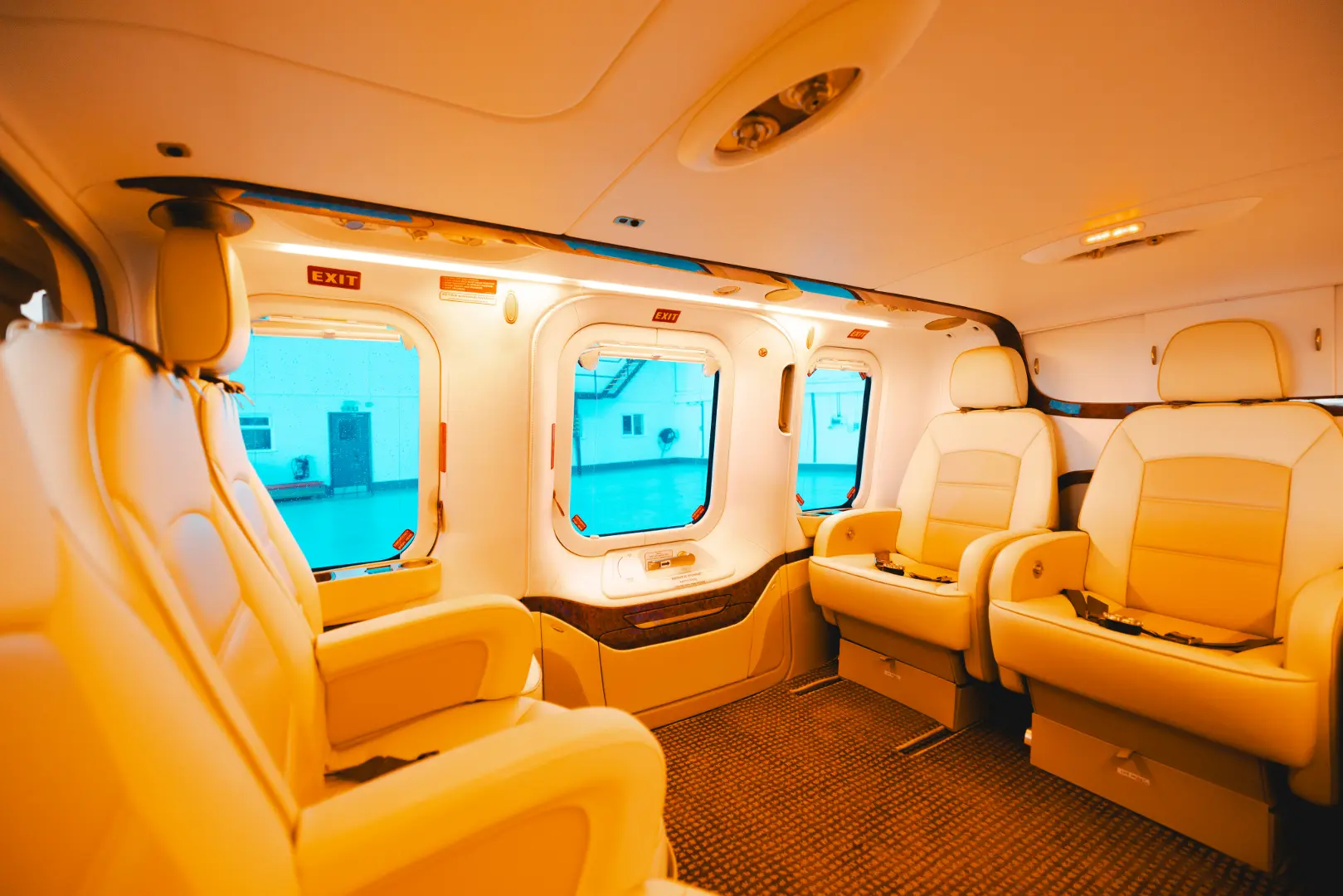

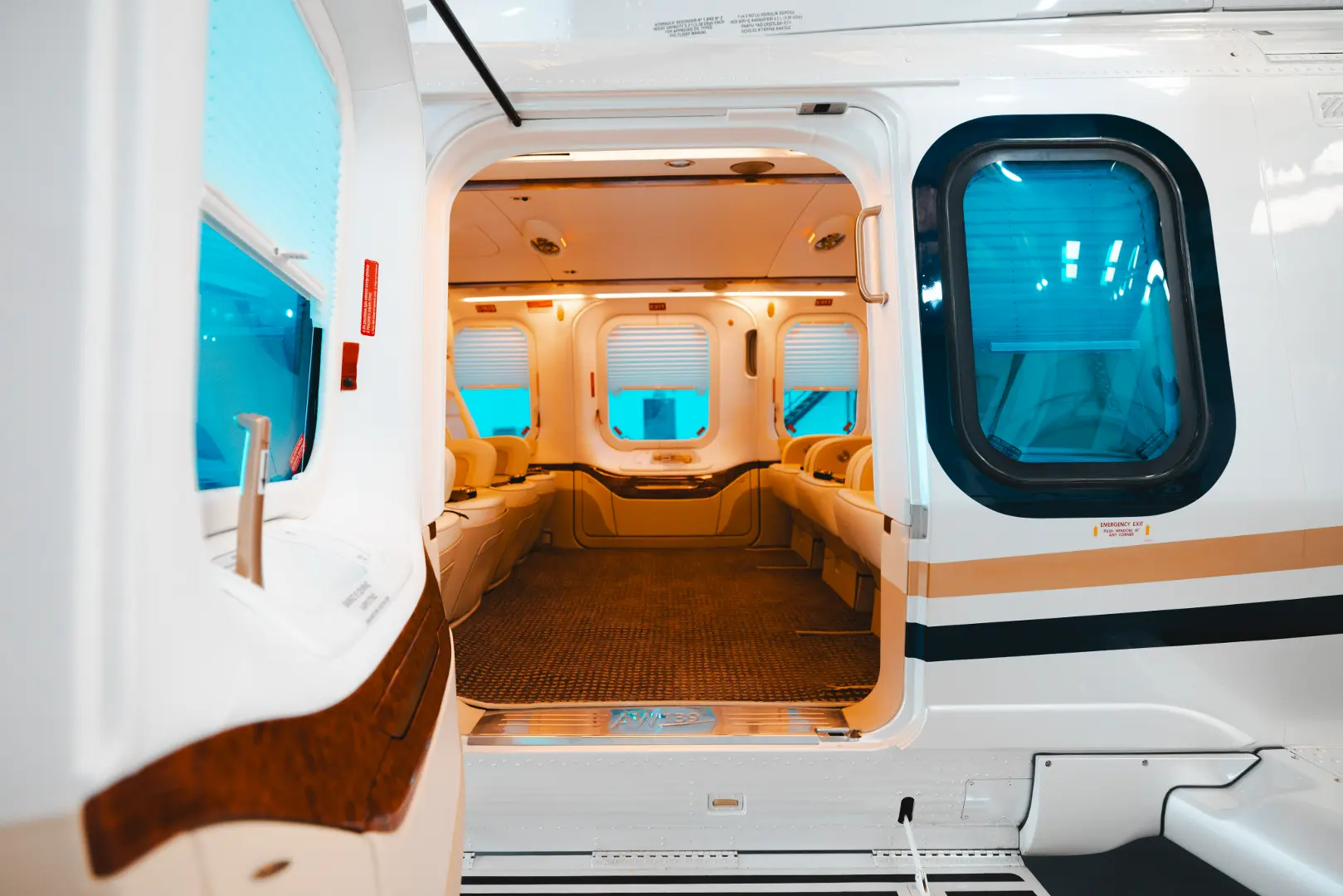

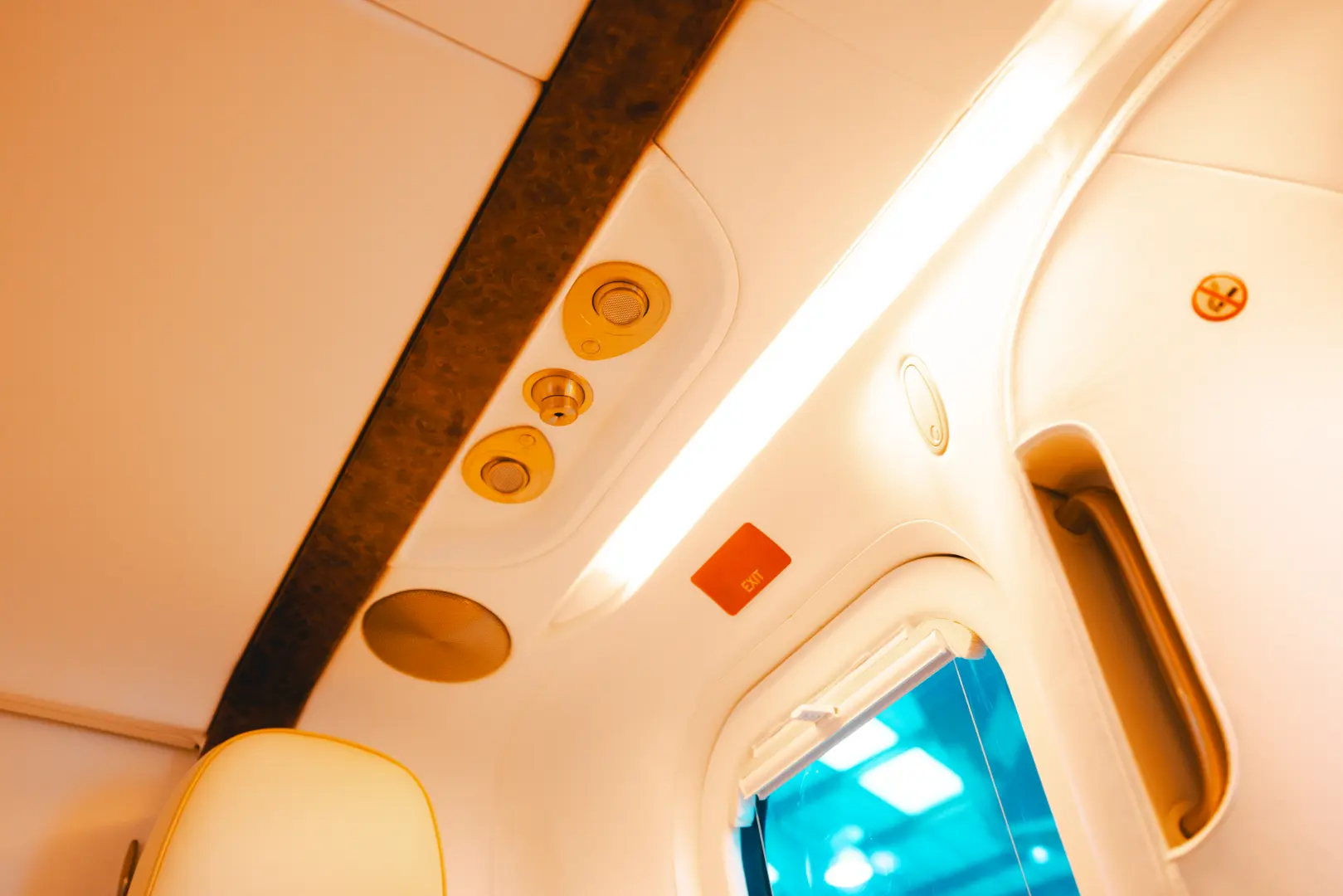

FIVE STAR Cabin Interior including:

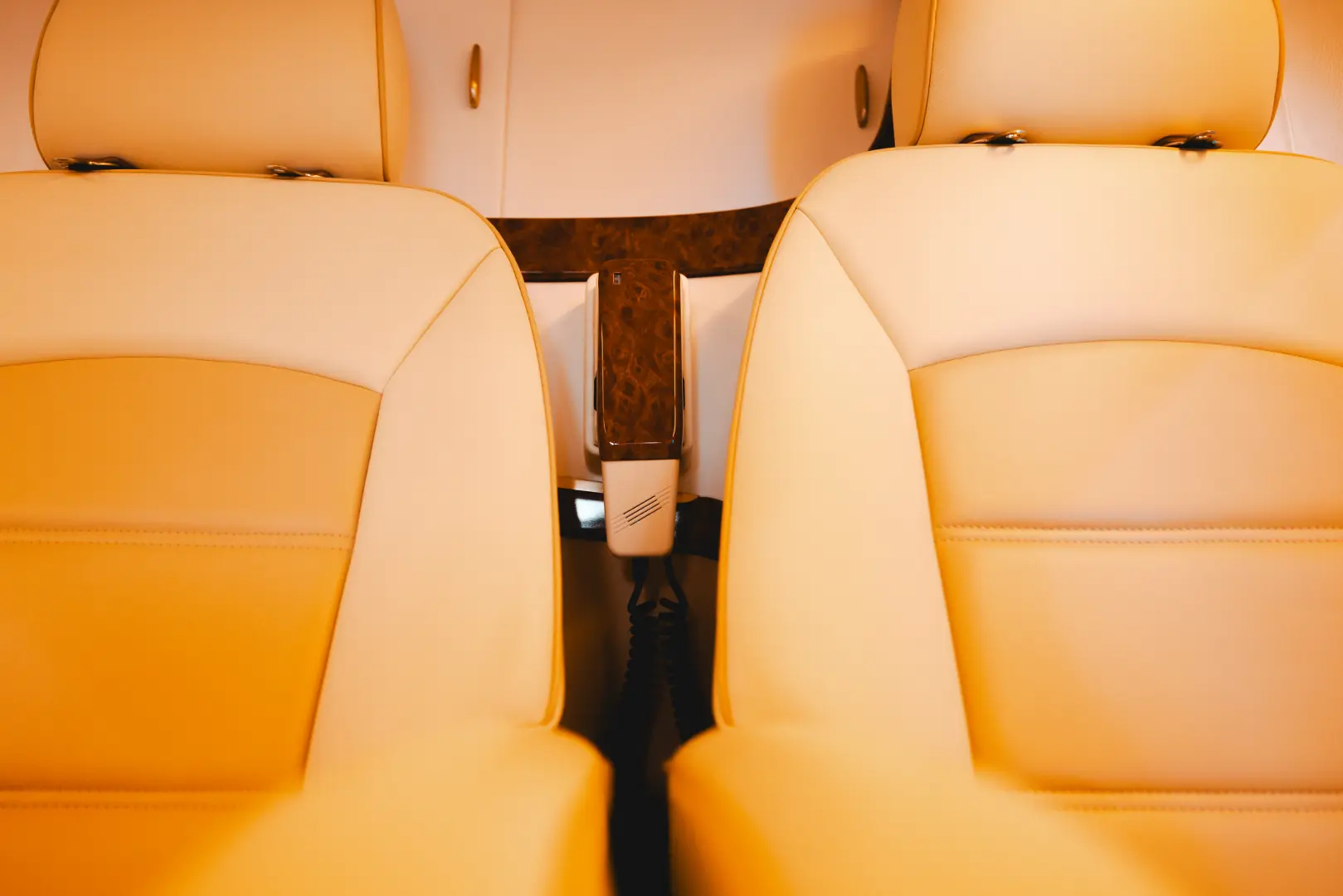

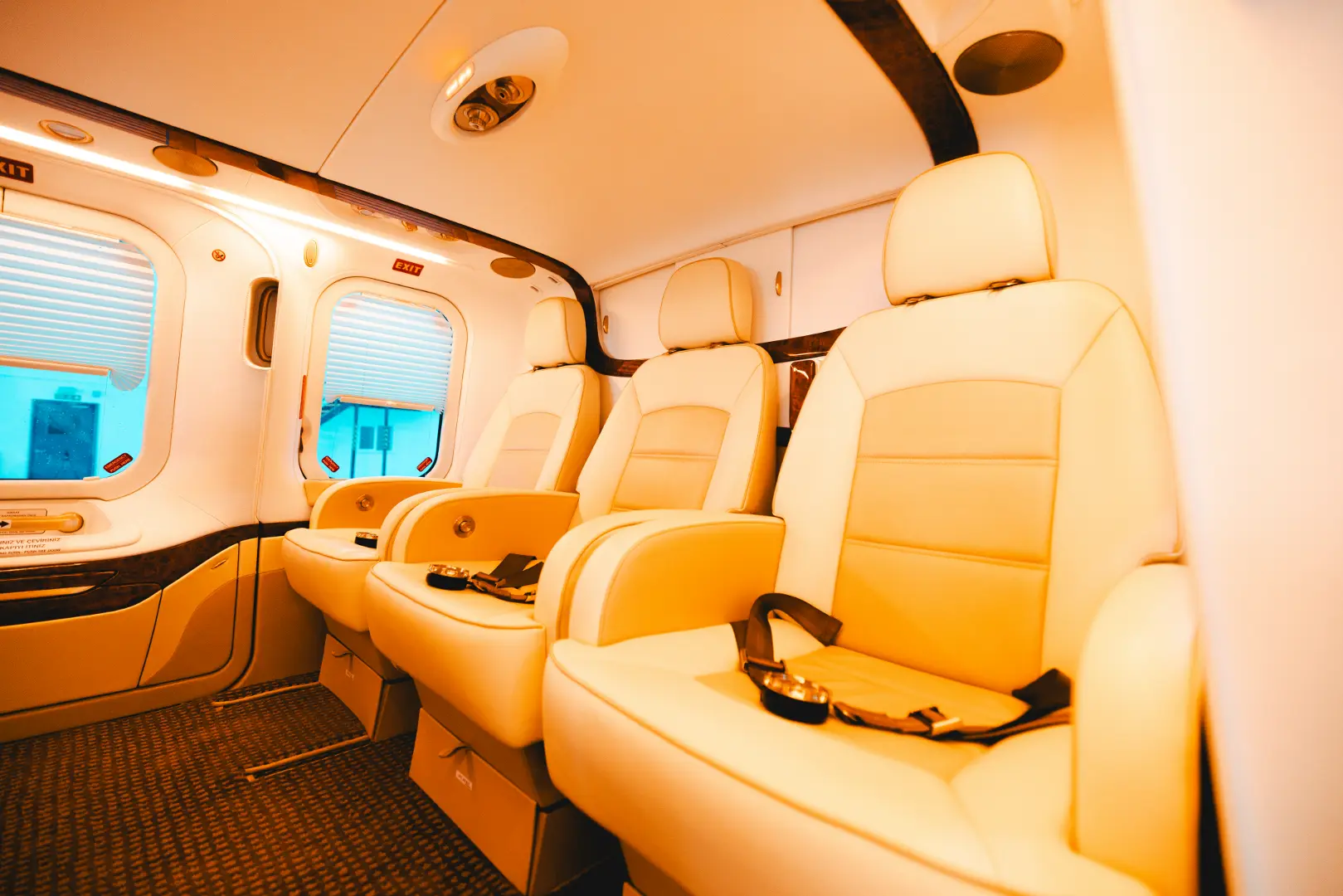

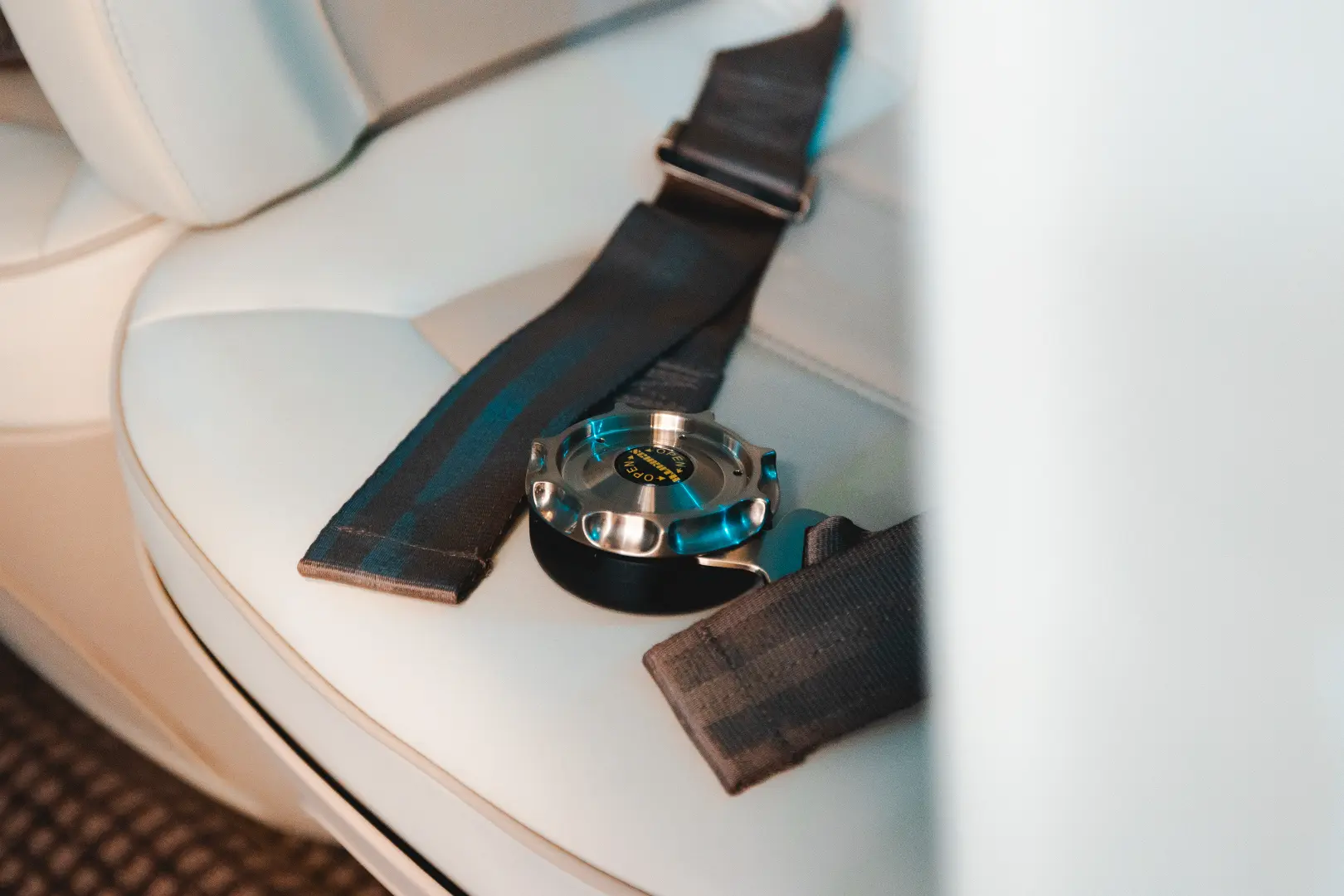

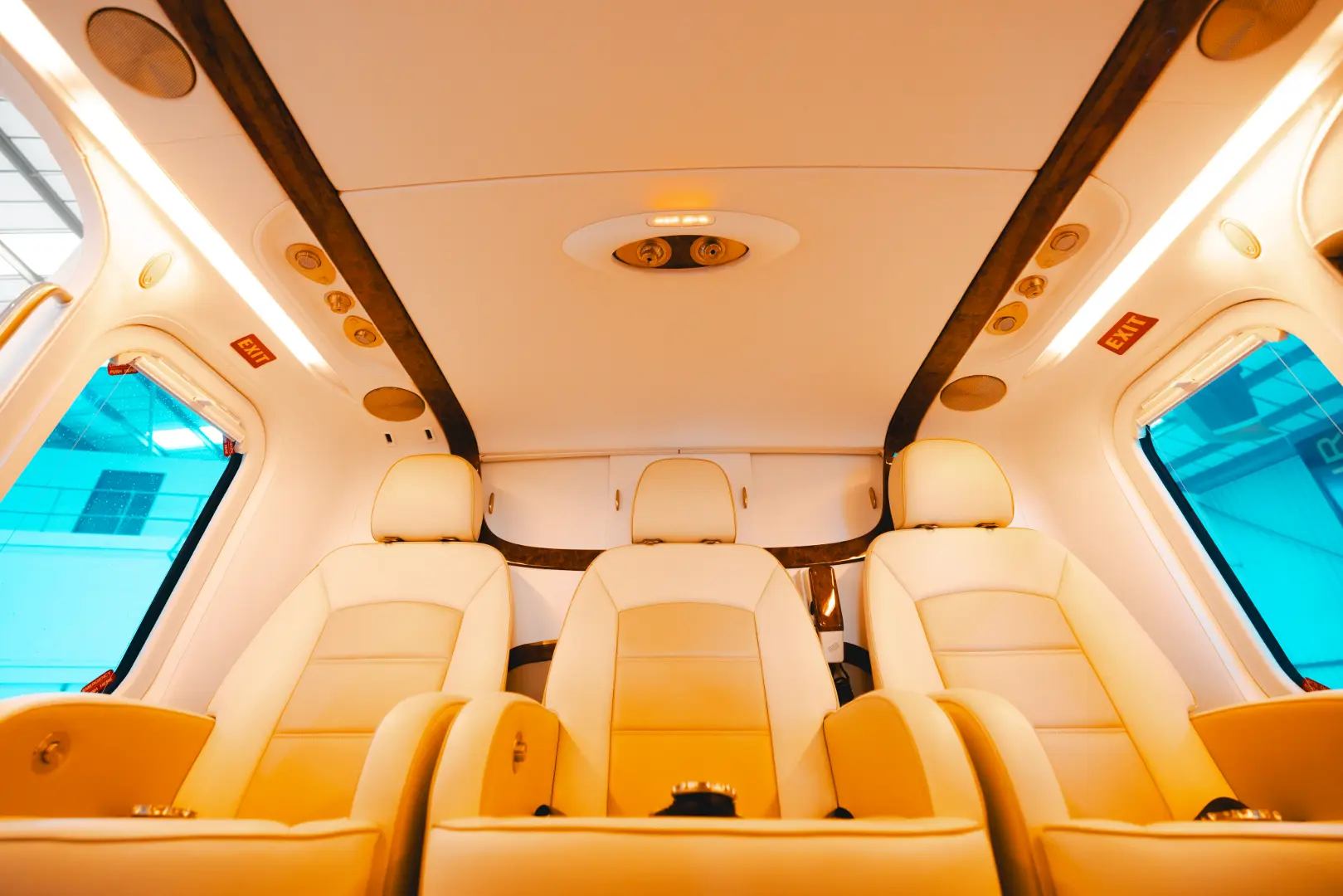

3 VVIP / crashworthy armchairs leather covered-forward looking, (with inertial reels and
safety belt, sliding inflight direction, reclining backrest)
One Divan crashworthy seat leather covered (with inertial reels and 4 ea safety belts and
understorage compartment )

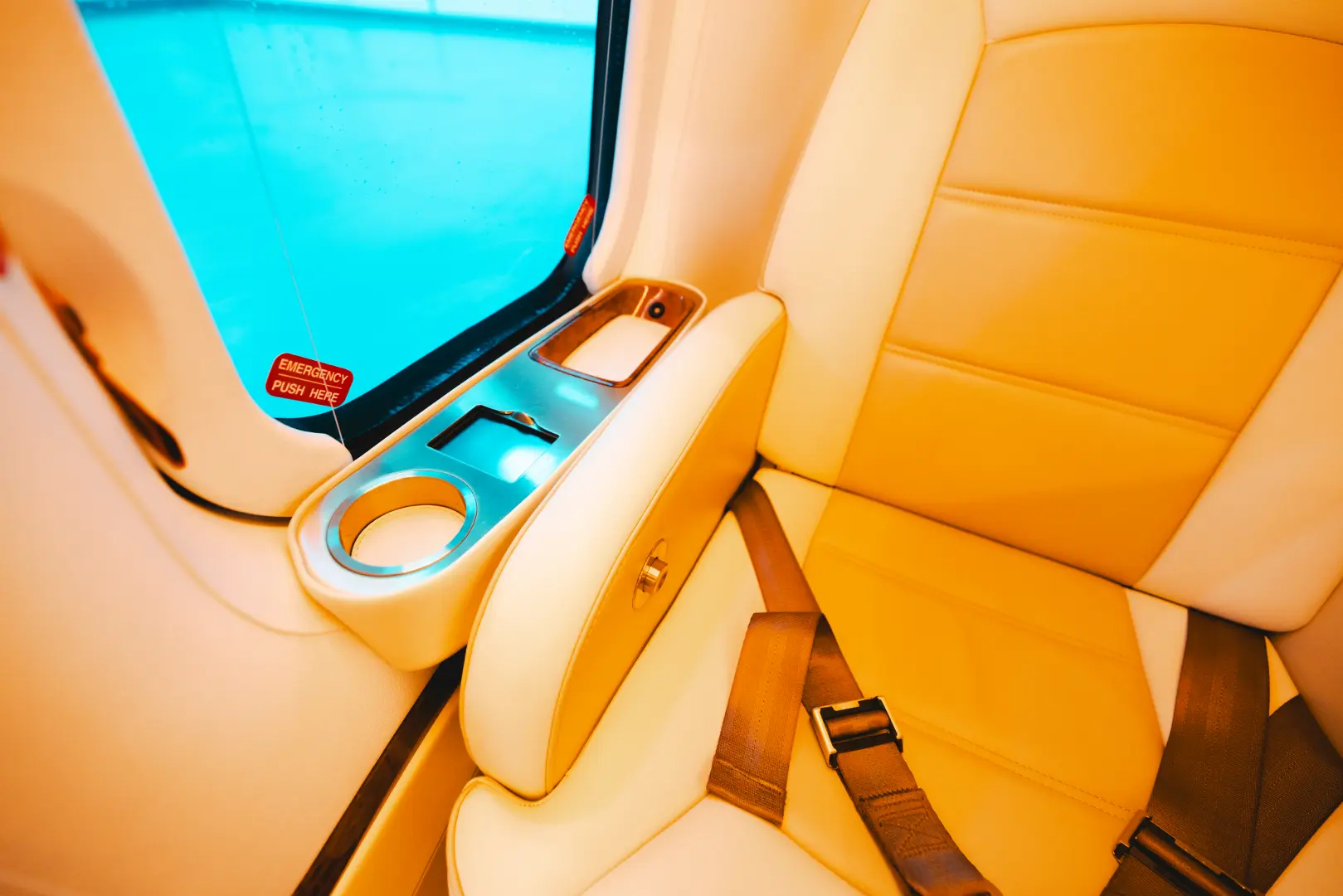

2 lateral covered armrests cabinets with metal cup holder, ICS control and multipurpose
holder installed on the divan seat )
2 additional standard crashworthy seats leather covered, including dedicated carpeting
Headsets Bose ANR type with Bluetooth capable
Multipurpose Cubby with sliding doors
Night curtain cabin separator

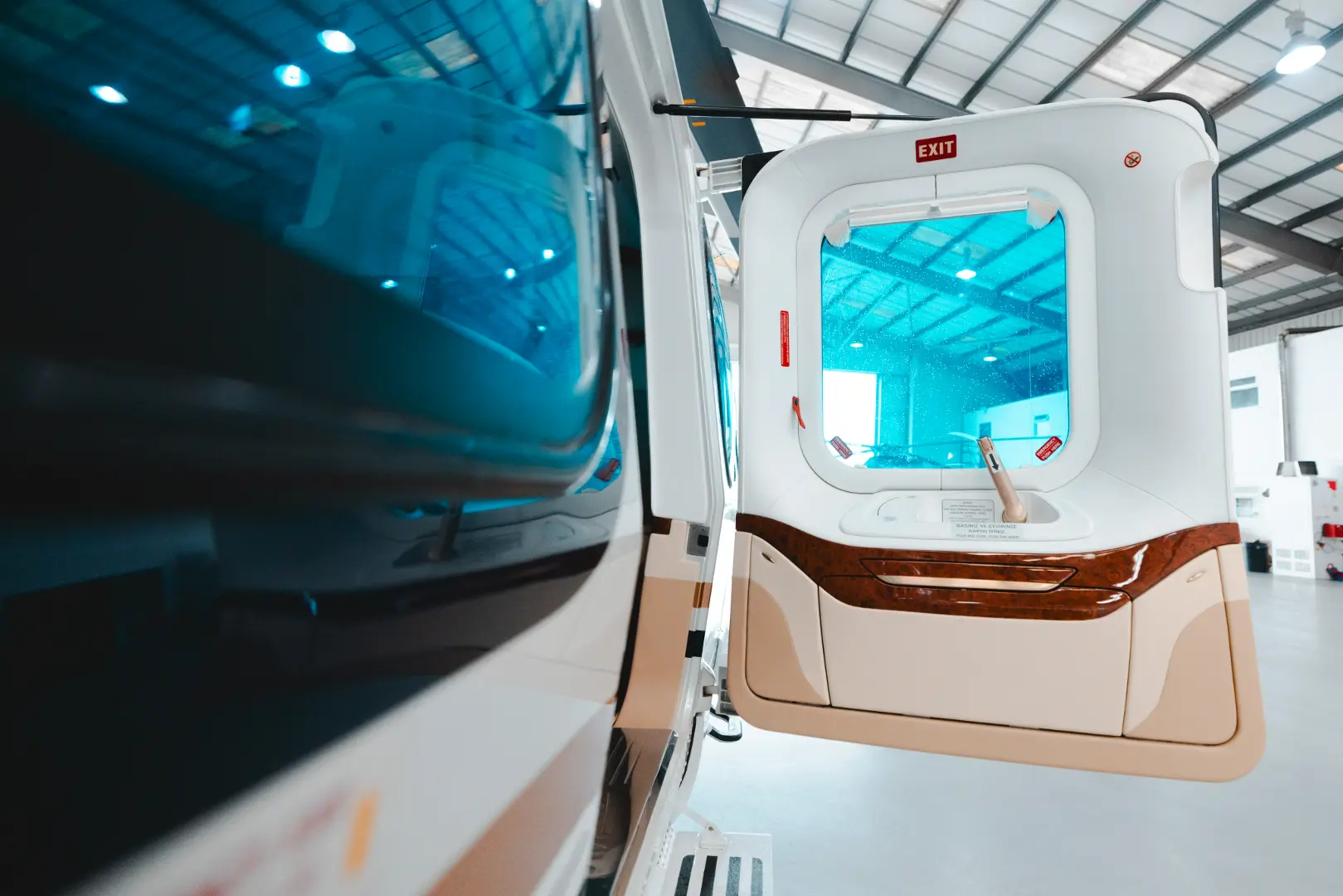

Passenger cabin hinged doors
Air conditioning system (Enviro)
ICS in the cabin for all passengers (ICS phone to speak with pilots)
Passenger cabin thermo acoustic double layer tinted windows
Two 115V AC power outlets in cabin and one 28V DC power outlet in cockpit
VVIP Ultrasilent soundproofing
Cockpit tinted upper windows (smoked colour)
Co-pilot hinged window
Pilot headset hooks (Qty 2)
Approach plates chart holders with lights for pilot and co-pilot
